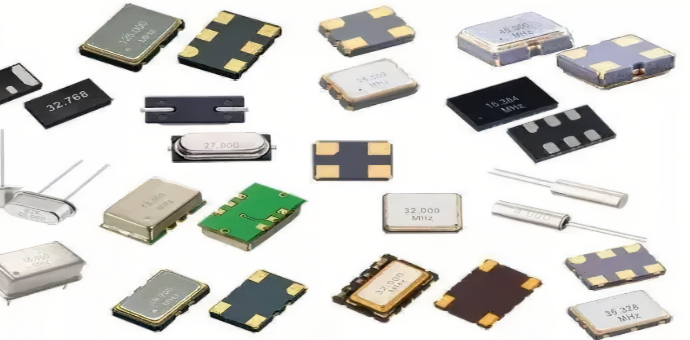

Quartz oscillators:
1). We can offer oscillators (including programmable oscillators and 32.768kHz oscillators) in a wide range of packages and output types including HCMOS, True Sinewave, LVPECL, HCSL and LVDS
For quotation, pls offer below options:
Eg.: SX1-25-EP-20-C-700M
Means SMD2x1.6mm, +2.5V, -40C to +85C, +/-20ppm, CMOS, 700M
| Type | Supply voltage | Temp. range | Over temp. | Output | Freq. | |
| SX1 = 2×1.6mm
SX2 = 2.5x2mm SX3 = 3.2×2.5mm SX5 = 5×3.2mm SX7 = 7x5mm SP2 = 14.3×8.7mm DIP08 = 12.7×12.7mm DIP14 = 20.7×13.1mm |
18 = +1.8V
25 = +2.5V 28 = +2.8V 30 = +3.0V 33 = +3.3V 50 = +5V |
A = -60ºC
B = -55ºC C = -50ºC D = -45ºC E = -40ºC F = -35ºC G = -30ºC H = -25ºC I = -20ºC J = -15ºC K = -10ºC L = 0ºC |
M = +60ºC
N = +70ºC O = +80ºC P = +85ºC Q = +90ºC R = +100ºC S = +105ºC T = +125ºC U = +150ºC V = +175ºC W = +200ºC X = +225ºC |
20 = +/-20ppm
50 = +/-50ppm . . . xy = +/-xyppm |
C = CMOS
LP = LVPECL LD = LVDS HS = HCSL LE = Low EMI TS = True Sine |
Pls specify |
Notes:
1, Not all options are available
2, SX = SMD series
3, Package height is our standard, or pls specify
2). GATED OSCILLATORS FOR SECONDARY RADAR (IFF, AIR SECURITY)
Please refer to https://www.axtal.com/English/Products/OscillatorModules/GatedCrystalOscillatorsforIFF/
3). PHASE-LOCKED CRYSTAL OSCILLATORS (PLO, PLXO, FCXO)
Pls refer to https://www.axtal.com/English/Products/OscillatorModules/PhaseLockedOscillatorModules/
