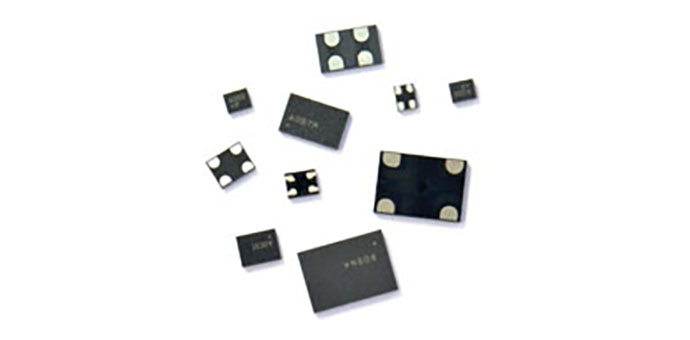

MEMS oscillators:
We can provide general-purpose MEMS oscillators in a wide range of packages and supply voltages, frequencies between 1.0M and 137M. Other frequencies are available on request. They are a perfect fit for high shock applications. Delivery times are very short, available within 1-2 weeks.
For quotation, pls offer below options:
Eg.: MX1-25-EP-20-E-H-135M
Means SMD2x1.6mm, +2.5V, -40C to +85C, +/-20ppm, Tri-state enable, 18pF, 135M
| Type | Supply voltage | Temp. range | Over temp. | Tri-state | Output | Freq. | |
| MX1 = 2×1.6mm
MX2 = 2.5x2mm MX3 = 3.2×2.5mm MX5 = 5×3.2mm MX7 = 7x5mm
|
18 = +1.8V
25 = +2.5V 28 = +2.8V 30 = +3.0V 33 = +3.3V 1V3 = +1.8V to +3.3V 2V3 = +2.5V to +3.3V |
A = -60ºC
B = -55ºC C = -50ºC D = -45ºC E = -40ºC F = -35ºC G = -30ºC H = -25ºC I = -20ºC J = -15ºC K = -10ºC L = 0ºC |
M = +60ºC
N = +70ºC O = +80ºC P = +85ºC Q = +90ºC R = +100ºC S = +105ºC T = +125ºC U = +150ºC V = +175ºC W = +200ºC X = +225ºC |
20 = +/-20ppm
50 = +/-50ppm . . . xy = +/-xyppm |
E = Tri-state enable
B = Tri-state power down F = None |
15 = 15pF
H > 15pF, pls specify |
Pls specify |
Notes:
1, Not all options are available
2, MX = SMD series
3, Package height is our standard, or pls specify
