VCXO & TCXO / TCVCXO:

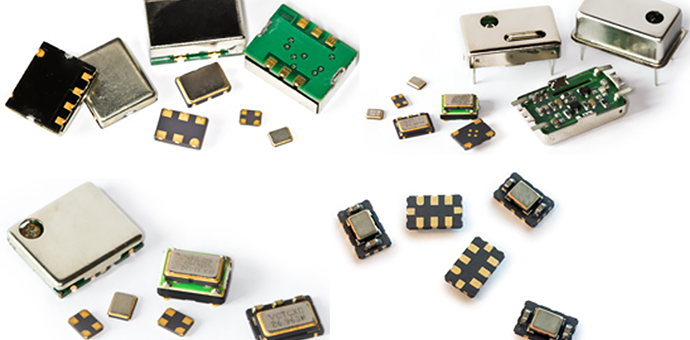

Our Voltage Controlled Crystal Oscillators (VCXOs) and Temperature-Compensated Crystal Oscillators (TCXOs) / TCVCXOs are produced with CMOS, LVPECL, LVDS, HCSL, CML or True Sine Wave outputs in a wide variety of packages and specification characteristics.
For quotation, pls offer below options:
Eg.: SX7-30-AP-05-E2-6P-5-C-700M
Means SMD7x5mm, +3.0V, -60C to +85C, +/-0.5ppm temp. stab., #2 pin tri-state, 6 pads, +/-5ppm pulling, CMOS output, 700M
| Type | Supply voltage | Temp. range | Over temp. | Tri-state | Pads | Pulling (min.) | Output | Freq. | |
|
SX2 = 2.5x2mm SX3 = 3.2×2.5mm SX5 = 5×3.2mm SX7 = 7x5mm SP2 = 14.3×8.7mm DIP08 = 12.7×12.7mm DIP14 = 20.7×13.1mm SX2KTF = 2.15×1.35mm SX3KTF = 3.28×2.5mm
|
18 = +1.8V
25 = +2.5V 28 = +2.8V 30 = +3.0V 33 = +3.3V 50 = +5.0V |
A = -60ºC
B = -55ºC C = -50ºC D = -45ºC E = -40ºC F = -35ºC G = -30ºC H = -25ºC I = -20ºC J = -15ºC K = -10ºC L = 0ºC |
M = +60ºC
N = +70ºC O = +80ºC P = +85ºC Q = +90ºC R = +100ºC S = +105ºC T = +125ºC U = +150ºC V = +175ºC W = +200ºC X = +225ºC |
05 = +/-0.5ppm
2 = +/-2ppm 20 = +/-20ppm 50 = +/-50ppm . . . xy = +/-xyppm |
E1 = #1 tri-state
E2 = #2 tri-state F = None |
4P = 4 pads
6P = 6 pads |
5 = +/-5ppm
50 = +/-50ppm 100 = +/-100ppm . . . xy = +/-xyppm |
C = CMOS
LP = LVPECL LD = LVDS HS = HCSL TS = True Sine CL = CML |
Pls specify |
Notes:
1, Not all options are available
2, MX = SMD series
3, SX2KTF and SX3KTF = 3.28×2.5mm are only for 32.768kHz
4, Package height is our standard, or pls specify
